Answer
$v_{ac}=16V$
$v_{cd}=-24V$
Work Step by Step

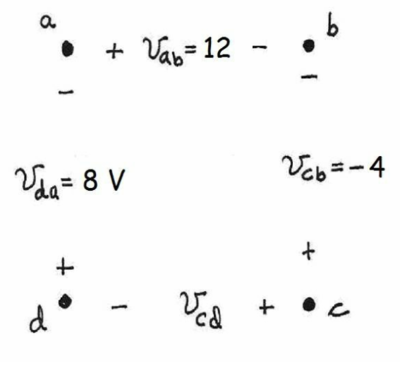

Using the diagram, we can apply KVL to the loop areas:
$v_{ab}-v_{cb}-v_{ac}=0, v_{ac}=12-(-4) V=16V$
$v_{ab}-v_{cb}+v_{cd} +v_{da}=0, 12-(-4)+v_{cd}+8=0, v_{cd}=-24V$
Electrical Engineering: Principles & Applications (6th Edition)
by Hambley, Allan R.
Published by
Prentice Hall
ISBN 10:
0133116646
ISBN 13:
978-0-13311-664-9
Chapter 1 - 1.5 - Problems - Kirchhoff's Voltage Laws - Page 39: P1.47
