Fundamentals of Physics Extended (10th Edition)

Published by Wiley
ISBN 10: 1-11823-072-8
ISBN 13: 978-1-11823-072-5

Chapter 4 - Motion in Two and Three Dimensions - Questions: 5b

Answer

Situation (b) has the second greatest speed final speed. Its final speed also equals its initial speed.

Work Step by Step

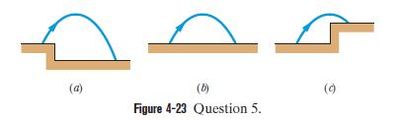

Based off of the figure, the only difference between the situations is the height of the landing plane. The projectile with the lowest landing position will have the longest travel time, as well as the longest time for gravity to accelerate it. Situation (b) has the projectile landing at the same height as it started: above situation (a) and below situation (c) This means that the projectile is situation (b) is traveling faster than (c) but slower than (a).
Small 1463453039
