The sign of the x and y coordinates respectively of d1+d2 are (-,+)
Work Step by Step

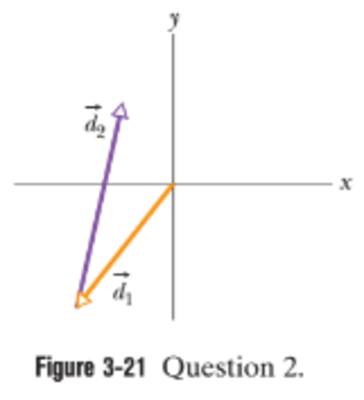

There is a force acting towards the 4th quadrant, and a greater force acting towards the 1st quadrant. The resultant force is in the 2nd quadrant, which has xy coordinate signs of (-,+). The end of d2 is essentially where d1+d2 is located.
